Technical information
Glass entrance doors

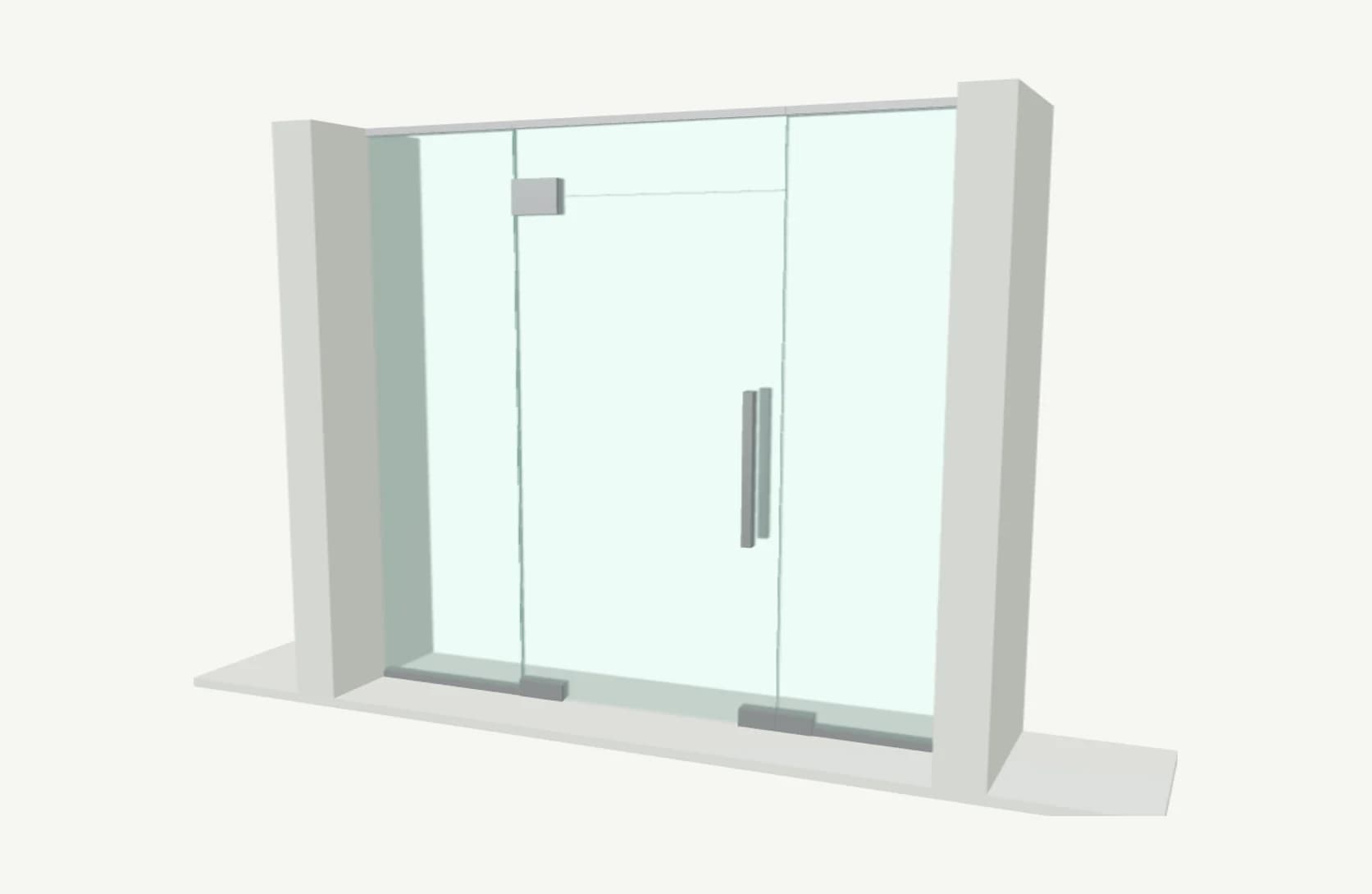

Frameless glass doors for shops, offices and homes: toughened glass held by patch fittings, hung on floor springs or pivots, with fixed side panels and fanlights as needed.
At a glance
- Glass
- 10 or 12 mm toughened; 12.8 mm toughened laminated
- Toughening
- Toughened safety glass to BS EN 12150-1 on every piece.
- Edges
- Polished edges
- Holes and cut-outs
- Patch fitting and lock cut-outs to the fitting's template
- Sizes
- Drawn to your opening
- Priced
- By hand, from your design or drawings
Where it is used
- Shop and office entrances
- Internal doors in glass partitions
- Lobbies and reception areas
How it is priced
Draw the entrance in the door designer or send us the opening sizes. Entrance doors are drawn and priced by hand.
What we supply
Glass
- 10 mm and 12 mm toughened
- The usual glass for frameless doors and side panels.
- 12.8 mm toughened laminated
- Where the glass must stay in place if it breaks.
Processing and the build-up
- Toughening
- Every door and side panel is toughened to BS EN 12150-1.
- Patch and lock cut-outs
- Cut to the fitting maker's template before toughening. Holes follow the BS EN 12150-1 limits for toughened glass: at least as wide as the glass is thick, and clear of edges and corners by a multiple of the thickness. Our drawing checks every position before cutting.
- Manifestation
- Marking at the two safety levels, drawn on the design.
- Made to measure
- Toughened glass cannot be cut, drilled, notched or edge-worked after it is toughened. Every size, hole and cut-out is fixed on the drawing before the glass is made.
Regulations
Approved Document K, section 5 (requirement K4)
Glazing in a critical location must break safely (BS EN 12600 class 3 or better), be robust, be in small panes, or be protected. Critical locations: any glass in a door or within 300 mm of a door edge up to 1500 mm above the floor, and any glass in a wall up to 800 mm above the floor. A pane wider than 900 mm in a door or door side panel needs class 2.
England. This section took over the former Approved Document N.
Approved Document K, section 7 (requirement K5.2)
Large areas of glass that people could walk into, such as glass doors and screens, carry marking at two levels: 850 to 1000 mm and 1400 to 1600 mm above the floor.
Buildings other than homes, and glazed doors and screens where they could be mistaken for an opening.
Approved Document M (access to and use of buildings)
Doors in buildings other than homes need a minimum clear opening width, an opening force a wheelchair user can manage, and glass that is easy to see. The door is drawn to these on the quotation drawing.
Entrance doors and doors in partitions in buildings other than homes.
Installation
- The floor spring box is set level in the screed before the floor finish, at the position on our drawing.
- The head fixing needs a solid structure above the door to take the top pivot.
- Adjust the door's closing speed and check it closes without slamming.
Care and cleaning
- Clean with warm water and a little washing-up liquid or a household glass cleaner, using a soft cloth, a chamois or a squeegee, then dry with a lint-free cloth.
- Never use scouring pads, wire wool, razor blades, scrapers or powder cleaners: they scratch the surface for good.
- Wipe stainless steel fittings with fresh water and dry them. Near the sea or a pool, do it every few weeks to stop brown tea staining.
- Have floor springs serviced as the maker recommends.
Questions
What glass is a glass door made from?
Toughened safety glass, usually 10 or 12 mm. A glass pane wider than 900 mm in a door needs BS EN 12600 class 2 (Approved Document K).
Do glass doors need marking?
Yes, glass doors that could be walked into carry marking at two levels (Approved Document K, section 7).
Standards that apply
| Standard | What it covers |
|---|---|
| BS EN 12150-1Glass in building. Thermally toughened soda lime silicate safety glass. Definition and description | What toughened safety glass is, its fragmentation test, flatness and edge work, and the limits for holes and notches. Every toughened pane carries a mark naming the standard. |
| BS EN 12600Glass in building. Pendulum test. Impact test method and classification for flat glass | The impact test that classes safety glass. The class is written X(Y)Z: X and Z run from 3 (lowest drop height) to 1 (highest); Y is how it breaks: A like ordinary glass, B holding together like laminated glass, C in small pieces like toughened glass. |
| BS 6262-4Glazing for buildings. Code of practice for safety related to human impact | Where safety glass is needed in buildings and how to select it. |
| BS EN ISO 12543Glass in building. Laminated glass and laminated safety glass | Laminated glass: two or more panes bonded with an interlayer that holds the pieces together if the glass breaks. Part 2 covers laminated safety glass. |
Documents
The specification sheet carries this page's content with today's catalogue figures, in three printable pages.
